La ruota originale dello scappamento

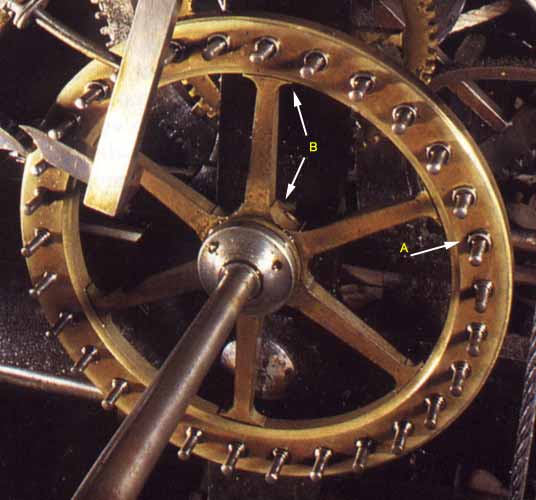

The original escapement wheel

scruotaa.jpg, 29 kB

La ruota di scappamento originale, in ottone a sei raggi magistralmente rifinita e dalla profilatura elegantemente sagomata (B).
Si può notare come i perni (A) siano pezzi in acciaio eseguiti su misura e imboccolati nell'ottone, ben differenti dai bulloni industriali che possiamo vedere nella prossima foto.
Tale rimase e funzionò perfettamente dal 1858 fino al maggio 1997, quando l'Orologio fu smontato per essere "restaurato".
Funzionò egregiamente per 140 anni, dunque, mentre Brusa giunse al punto di scrivere: " Ci siamo resi conto ben presto che, per rimediare allo stato precario in cui era venuto a trovarsi il movimento, sarebbe riuscito inevitabile andare oltre un criterio meramente conservativo ".
L'affermazione, come appare evidente alla luce di quanto è noto, è del tutto priva di senso.
The original escapement wheel, six rayed in brass alloy. Edges' profiling is cared and elegant (B), refining is magistrally done.
As can be noticed, the pins (A) are built-on-purpose steel pieces, bushed in the brass, quite different by the new industrial nuts and bolts that can be seen in the next photo.
The mechanism was on place and working from 1858 up to 1997, when the clock was unmounted to be "restored".
It worked fine for 140 years, indeed, while Mr. Brusa (the "restauration" ager) has been able to write: "We soon realized that, to recover from the unsecure state in which the movement find itself, it would have been unavoidable to pass over a merely conservative criterion".
This claim, in the light of known facts, is totally lacking of sense.
